RNASeq

Efforts to sequence the transcripts expressed in a cell or organism.

Statistics

Measuring gene expression

Resources

See the StatQuest Video on RPKM/FPKM/TPM to better understand how the statistics can be used to evaluate gene expression.

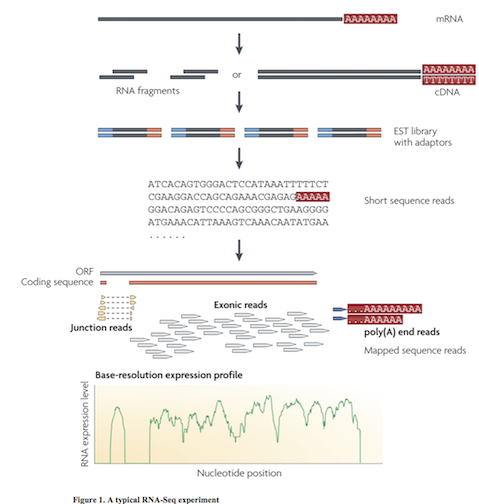

Using techniques to extract the Wang et al. Nat Rev Genetics. 2009. doi:10.1038/nrg2484 RNAseq_schema

Multiple approaches to understanding the transcriptome

Genome sequenced, align RNAseq reads to genome
de novo Assembly of mRNA into transcripts
Quantify gene expression from reads aligned to genome or transcripts

Reads to Genome mapping

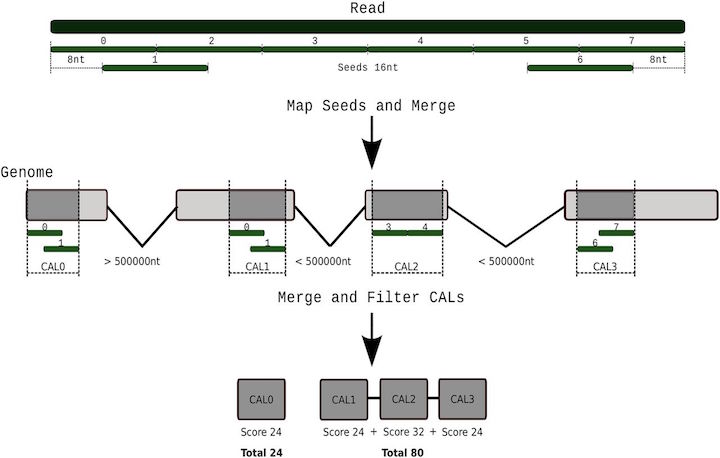

It is important to note that aligning sequences to the genome when there are introns requires dealing with introns. So splice-aware alignments are needed in some cases.

SpliceAlign

Tarraga et al 2017. DNA Research.10.1093/dnares/dsv039

Reads to Genome mapping

Challenges: mRNA is spliced, genome contains introns

Splice-aware short read aligners. Speed and accuracy tradeoffs

Tophat + Bowtie – this is old don’t use
HISAT2
GMAP/GSNAP
STAR

Need to Quantify expression

Count reads overlapping exons
Table of total read counts per gene
Normalize counts for gene length and sequencing library depth
Gene expression then is FPKM - Fragments per Kilobase per Millions of reads
Tools: htseq-count, stringtie
SubRead
BEDtools
R tools with iRanges

Evaluating expression differences

Statistical tools for evaluating gene expression differences

Alternative approach for Quantifying

Compare reads to Transcripts instead of Genome

kallisto and Sailfish are common tools
Bray et al 2016 “Near-optimal probabilistic RNA-seq quantification” doi:10.1038/nbt.3519
Patro et al 2014 “Sailfish enables alignment-free isoform quantification from RNA-seq reads using lightweight algorithms” doi:10.1038/nbt.2862

Alignment free quantification

Usage: kallisto quant [arguments] FASTQ-files

Required arguments:
-i, --index=STRING            Filename for the kallisto index to be used for
                              quantification
-o, --output-dir=STRING       Directory to write output to

Optional arguments:
    --bias                    Perform sequence based bias correction
-b, --bootstrap-samples=INT   Number of bootstrap samples (default: 0)
    --seed=INT                Seed for the bootstrap sampling (default: 42)
    --plaintext               Output plaintext instead of HDF5
    --fusion                  Search for fusions for Pizzly
    --single                  Quantify single-end reads
    --single-overhang         Include reads where unobserved rest of fragment is
                              predicted to lie outside a transcript
    --fr-stranded             Strand specific reads, first read forward
    --rf-stranded             Strand specific reads, first read reverse
-l, --fragment-length=DOUBLE  Estimated average fragment length
-s, --sd=DOUBLE               Estimated standard deviation of fragment length
                              (default: -l, -s values are estimated from paired
                               end data, but are required when using --single)
-t, --threads=INT             Number of threads to use (default: 1)
    --pseudobam               Save pseudoalignments to transcriptome to BAM file
    --genomebam               Project pseudoalignments to genome sorted BAM file
-g, --gtf                     GTF file for transcriptome information
                              (required for --genomebam)
-c, --chromosomes             Tab separated file with chromosome names and lengths
                              (optional for --genomebam, but recommended)

Note this won’t quite work to copy and paste.

#!/bin/bash -l
#SBATCH -p short -N 1 -n 1 -c 8 --mem 8G --time 2:00:00
#SBATCH -J kallisto
#SBATCH -o logs/%x.%j.log

module load kallisto

set -euo pipefail
CPU=${SLURM_CPUS_PER_TASK:-1}
ln -sf /bigdata/gen220/shared/data-examples/rnaseq/kallisto/S_cerevisiae_ORFs.fasta .
# you also need the reads in data/ and a samples.tsv file (ACC COND REP on each line)
kallisto index -i Scer.idx S_cerevisiae_ORFs.fasta
cat samples.tsv | while read ACC COND REP
do
 OUT=output/$COND.$REP
 kallisto quant -t $CPU --single -l 300 -s 20 -i Scer.idx -o $OUT data/${ACC}_1.fastq.gz
done

Save it as e.g. run_kallisto.sh, run mkdir -p logs, then sbatch run_kallisto.sh. See UNIX IV for how to choose -c, --mem and --time.

Go see /bigdata/gen220/shared/data-examples/rnaseq/kallisto

Denovo assembly

Trinity Assembler for RNASeq

#!/bin/bash -l
#SBATCH -p epyc -N 1 -n 1 -c 8 --mem 32G --time 1-00:00:00
#SBATCH -J trinity
#SBATCH -o logs/%x.%j.log

module load trinity-rnaseq

set -euo pipefail
CPU=${SLURM_CPUS_PER_TASK:-1}
# --max_memory is for Trinity's k-mer counting step; keep it below --mem
Trinity --seqType fq --left reads_1.fq --right reads_2.fq --CPU $CPU --max_memory 20G

ORF identification

Once we have assembled the transcriptome, want to find genes in there.

TransDecoder

Finds Open Reading Frames in mRNA transcripts

module load transdecoder
TransDecoder.LongOrfs -t target_transcripts.fasta

RNAseq read mapping

Using HISAT2 for RNAseq read mapping

Download those files.

# start an interactive session
srun -p short -N 1 -n 1 -c 4 --mem 16gb --time 2:00:00 --pty bash -l

CPU=${SLURM_CPUS_PER_TASK:-1}
module load hisat2
# uncompress
gunzip S_cerevisiae.gff3.gz S_cerevisiae.fasta.gz
# build index
hisat2-build S_cerevisiae.fasta yeast
# run search
ln -s /bigdata/gen220/shared/data-examples/rnaseq/yeast_rnaseq/*.gz .
hisat2  -x yeast -1 SRR3396381_1.fastq.gz -2 SRR3396381_2.fastq.gz -S SRR3396381.sam -p $CPU

module load samtools
samtools view --threads $CPU -b -o SRR3396381.bam SRR3396381.sam

samtools sort --threads $CPU -o SRR3396381.sort.bam SRR3396381.bam
samtools index SRR3396381.sort.bam
samtools flagstat SRR3396381.sort.bam

Get counts

Subread - http://subread.sourceforge.net/

module load subread
CPU=${SLURM_CPUS_PER_TASK:-1}
GENOME=S_cerevisiae.fasta
GFF=S_cerevisiae.gff3
OUTFILE=SRR3396381.tab
INFILE=SRR3396381.sort.bam
featureCounts -g gene_id -T $CPU -G $GENOME -s 0 -a $GFF -o $OUTFILE \
-F GTF $INFILE

Template for Projects

Here’s a template for RNASeq analyses

https://github.com/biodataprog/RNASeq_template

Click on ‘Use this template’ - you can create your own version of this.

It will prompt you to give it a name.

Go to the command line to download.

git clone https://github.com/yourname/YourRNASeqAnalysis.git

Edit samples.csv to describe names of some experiments SRR3396381.

Download data in input folder.

Download or use the download script to get genome files (need to put a genome FASTA file in the folder). If want to do kallisto will need a mRNA file of transcriptome.
